Cutting List
| KEY | QTY. | DESCRIPTION | DIMENSIONS |
| A | 4 | Leg | 46″ x 3-1/2″ x 1-1/2″ |
| B | 2 | Crossmember | 21″ x 3-1/2″ x 1-1/2″ |
| C | 1 | Base | 24″ x 31-5/8″ x 3/4″ |
| D | 1 | Top Shelf Plate | 24″ x 7-1/4″ x 3/4″ |
| E | 2 | Top Shelf Cap | 24″ x 1-1/2″ x 3/4″ |
Cut the plywood

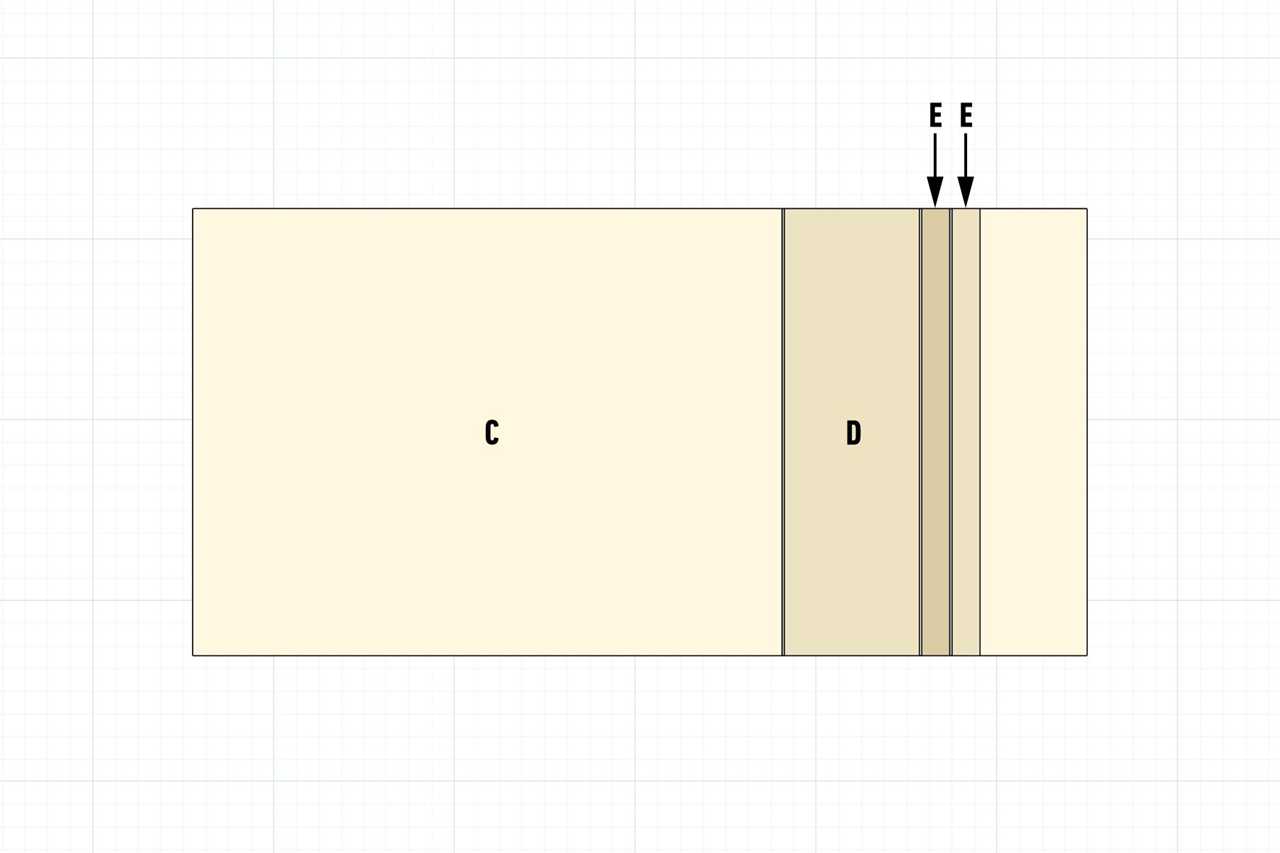

- Follow the cutting diagram and cut the plywood parts on the table saw.
- Cut a 15-degree angle on one edge of both top caps (E).
------------------------------------
